Description

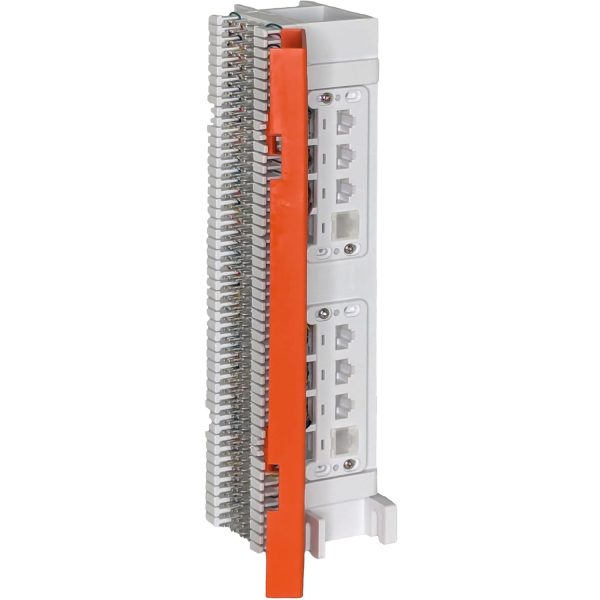

The ICC 66 Block Prewired with 12 RJ45 8P8C ports offers a reliable solution for organizing voice and data connections in telecommunications and networking applications. Pre-terminated for quick installation, this 66 block eliminates the need for manual wiring, reducing installation time and labor costs. It includes an 89D mounting bracket for secure wall mounting and a cover to protect terminations from dust and damage. Featuring IDC contacts with 100µ” tin plating, it provides consistent signal transmission and long-term durability. The block accommodates 22-24 AWG solid wire and meets TAA compliance standards, making it suitable for commercial and institutional use.
Features
- PRE-WIRED WITH 12 RJ45 8P8C PORTS: The 66 block comes pre-wired with twelve RJ45 8P8C ports, offering reliable connectivity for telephone systems and low-voltage telecom equipment. Includes an 89D mounting bracket that allows cable routing behind the block when mounted to a wall, streamlining installations for voice, PBX systems, and data applications.
- CONSISTENT IDC PERFORMANCE WITH COVER: Features IDC contacts with 100µ” tin plating, maintaining connectivity integrity through 750 insertion cycles and supporting 22–24 AWG wires. Includes a hinged cover to keep dust out and protect against rust, helping it last longer.
- RJ45 PORT CONNECTORS: Built with phosphor bronze alloy contacts plated with 50 micro-inches of gold over 70–100 micro-inches of nickel to prevent corrosion and ensure reliable performance through repeated connections. The thermoplastic housing provides durability for voice and data applications.
- UL LISTED AND COMPLIANT MATERIALS: The 66 wiring block and 89D bracket are made from UL 94V-0 flame-retardant plastic. The wiring block is designed to withstand 3.0–20.0 ft-lbs/in, ensuring dependable performance in demanding environments. Both meet U.S. government regulations, including TAA and Section 889 certification, making them suitable for government and institutional installations. They are UL Listed (E125268) and RoHS compliant, providing safety and reliability.
- ACCESSORIES (SOLD SEPARATELY): ICC Bridging clips (IC066BRCLP) and 66 punch down tool (ICACSPDT00).
Specifications
Material:
Housing: High Impact Retardant Plastic, UL 94V-0
IDC: Brass with 100 microinches of Tin
Spring Wire: Phosphor Bronze Alloy plated with 50 micro-inch of gold over 70~100 microinches of nickel
Temperature Range:
Storage: -40 degrees C to +70 degrees C
Operation: -10 to +60 degree C
Noncondensing: 93%
Electrical:
Electrical Insulation Resistance: -500 mohms min at 100V DC
Dielectric Withstanding Voltage: -100V RMS at 60Hz for 1 min
Contact Resistance: 2.5 mohms max
Mechanical:
Retention: 50N (11 LBF) for 60S
Insertion/Extraction Life: 750 Cycles MIN
IDC Wire Gauge: 22-24 AWG
